Distal Radius Locking Plate

  • Trauma & Extremities
  • Hand & Wrist

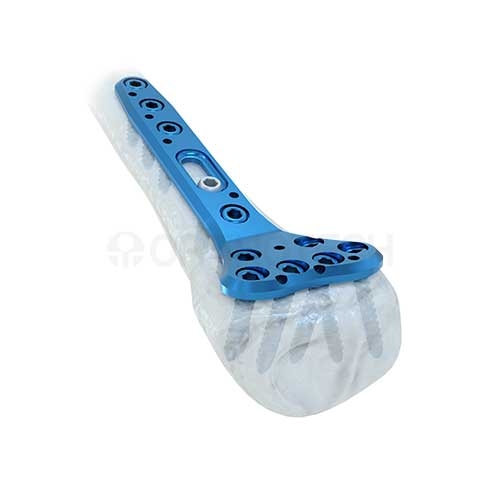

Distal Radius Locking Plate

Features
MFDS. Lisence#
13-1611
Meterial
Titanium (ASTM F67)
EDI Code
C5475080

Details

product information

Specification table

■ Distal Radius Small Plate (Gr.2)

ColorHoleLeftRight
Blue1P2421P2422
2P2423P2424
3P2425P2426


■ Distal Radius Small Plate (Gr.4)

ColorHoleLeftRight
Blue1P2421.DL01P2421.DR01
2P2421.DL02P2421.DR02
3P2421.DL03P2421.DR03
4P2421.DL04P2421.DR04
5P2421.DL05P2421.DR05
6P2421.DL06P2421.DR06
7P2421.DL07P2421.DR07
8P2421.DL08P2421.DR08
Non-anodizing
1P2421.L01P2421.R01
2P2421.L02P2421.R02
3P2421.L03P2421.R03
4P2421.L04P2421.R04
5P2421.L05P2421.R05
6P2421.L06P2421.R06
7P2421.L07P2421.R07
8P2421.L08P2421.R08


■ Distal Radius Narrow Plate (Gr.2)

ColorHoleLeftRight
Yellow1P2411P2412
2P2413P2414
3P2415P2416


■ Distal Radius Broad Plate (Gr.2)

ColorHoleLeftRight
Green1P2401P2402
2P2403P2404
3P2405P2406

Additional Specifications

■ Instruments

Description
Cat. No
Depth Gauge 60mm
IP20-24
Locking Driver 2.0 Hex.
IP20-16
Small Plate Driver Ø2.5mm - ST Pick Up
IP20-20
Drill Bit 2.0 (2.5 Cortical Screw)
IP20-03
Drill Guide - Long 2.0
IP20-11
Double Drill Sleeve 2.0x2.7
IP20-14
Small Plate System Case Radius
IT20-04


■ Screw

2.5mm Cortical Screw 6 ~ 30mm

2.5mm Locking Cortical Screw 6 ~ 30mm

2.5 Cortical Screw - Can. Type 6 ~ 30mm


(*By : 2mm)
