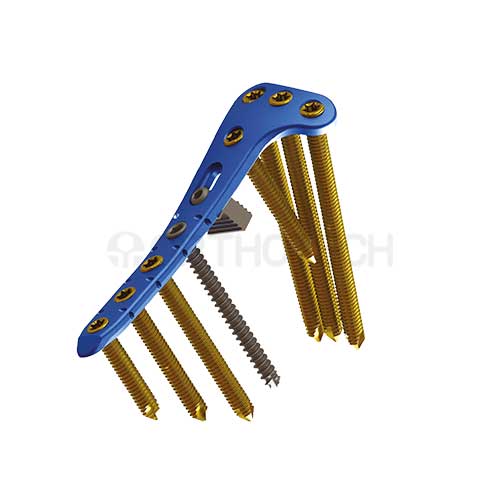

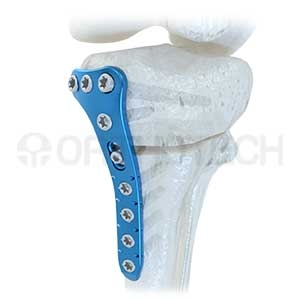

Baro-Fix® HTO Plate

제품특징
MFDS. Lisence#
13-1987
Meterial
Titanium (ASTM F67)
EDI Code
C5430180

상세 정보

 ✅ Choice of left, right

 ✅ High bone contact stability due to anatomical design

 ✅ Hight Satisfaction when suturing MCL, Hamstring osteoporosis with double hole Function

 ✅ Excellent safety with Angular Stability

 ✅Provide more options to users as the Block 1 hole + 3 holes can be used together

제품 정보

사양표

HoleLeftRight
3P50L03
P50R03
4P50L04
P50R04

추가 사양

■  Wedge Spiked Block

Size1 Hole3 Hole
5T (4.5 - 5.5 )
P5026
P50B05
6T (5.5 - 6.5)
P5027
P50B06
7T (6.5 - 7.5)
P5028
P50B07
8T (7.5 - 8.5)
P5029
P50B08
9T (8.5 - 9.5)
P5030
P50B09
10T (9.5 - 10.5)
P5031
P50B10
11T (10.5 - 11.5)
P5032
P50B11
12T (11.5 - 12.5)
P5033
P50B12
13T (12.5 - 13.5)
P5034
P50B13
14T (13.5 - 14.5)
P5035
P50B14
15T (14.5 - 15.5)
P5036
P50B15


■ Instruments

Description
Cat. No
Hammer
C208
Screw Driver Handle
ISO8-01
Z Retractor
IP50-04
Space Retractor
IP50-05
HTO Space
IP50-14
Double Drill Sleeve 4.5 / 3.7
IG42-3346
Sliding Hammer
IP50-10
Insert Holder 4.0
IP50-12
Can. Depth Guage
IG42-02
Osteotomy 22mm
IP50-06
Osteotomy 15mm
IP50-07
Osteotomy Impacter
IP50-08
Osteotomy Angular
IP50-09
Pick Up
IS42-06
Wire Sleeve 2.0
IG42-20
Drill Sleeve 4.3
IG42-43
Drill Sleeve 3.8
IG42-38
Guide Pin 1.8
IG42-18
Drill Bit ASS’Y-Can. Type 4.2
ID42-42A
Drill Bit 3.7
ID42-37A
Screw Driver Shaft T25
IS05-T25
Screw Driver Shaft Hex. 3.5
IS03-H35
Can. Screw Driver Shaft Hex. 3.5
IS04-H35
Screw Driver Shaft Hex. 2.5
IS03-H25


■  Block Connect Bolt (Length 10.8mm)

■  Screw

4.5mm Cortical Screw 26 ~ 70mm

5.0mm Locking Cortical Screw 26 ~ 70mm

5.0mm Locking Cortical Screw - Can. Type 26 ~ 70mm


(*By : 2mm)
