Cannulated Compression Screw (CCS)
- Trauma & Extremities
- Stand Alone Screws

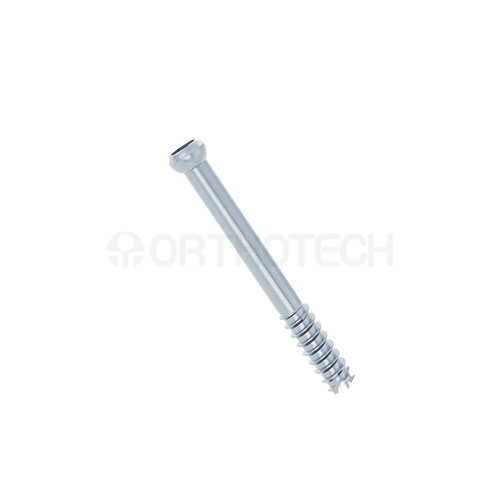

Cannulated Compression Screw (CCS)
4.0
4.0 Full Type Threaded
5.0
5.0 Full Type Threaded
6.5
6.5 Full Type Threaded

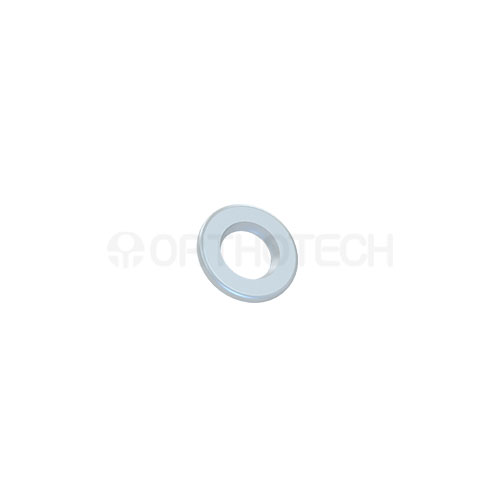

Washer
제품특징
- MFDS. Lisence#
- 21-847
- Meterial
- Titanium (ASTM F136)
- EDI Code
- C6411628 / D1211128(Washer)
상세 정보
제품 정보

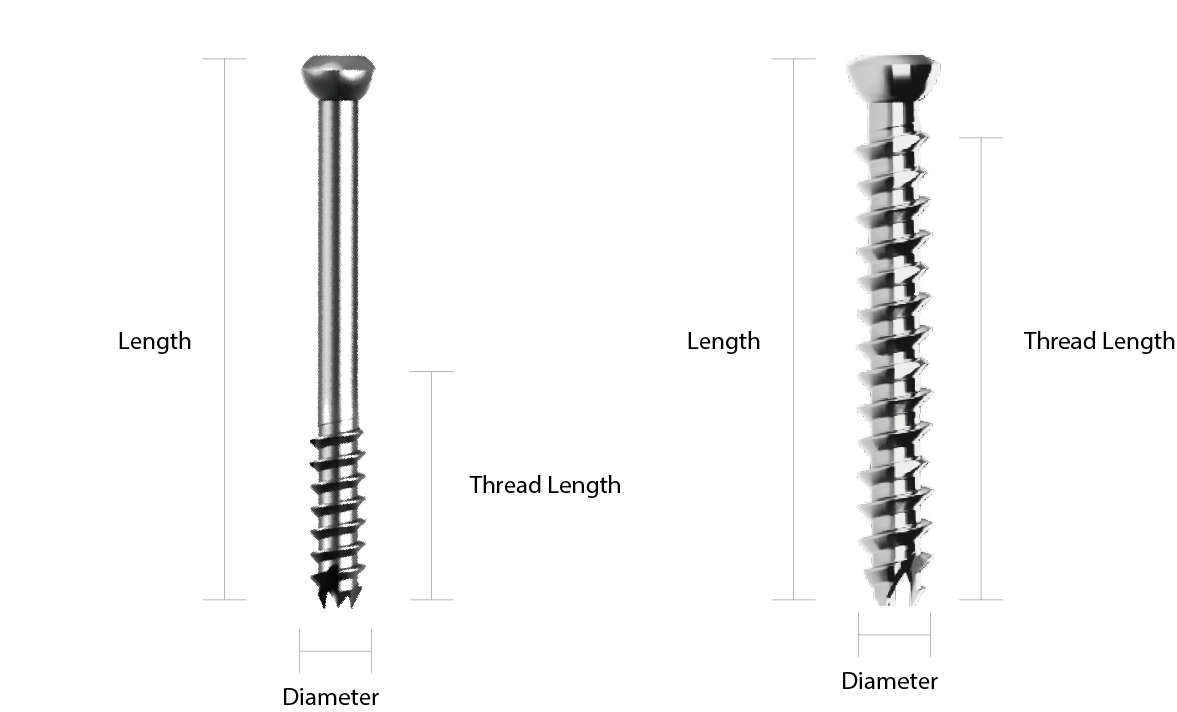

사양표
■ Ø4.0 CCS
| 1/3 Threaded Type | Full Threaded Type | ||
| Spec | Cat. No | Spec | Cat. No |
| 4.0 x 5 x 12mm | SU40012D | 4.0 x 5.5 x 12mm | SUF40012D |
| 4.0 x 5 x 14mm | SU40014D | 4.0 x 9.5 x 14mm | SUF40014D |
| 4.0 x 5 x 16mm | SU40016D | 4.0 x 11.5 x 16mm | SUF40016D |
| 4.0 x 6 x 18mm | SU40018D | 4.0 x 13.5 x 18mm | SUF40018D |
| 4.0 x 6 x 20mm | SU40020D | 4.0 x 15.5 x 20mm | SUF40020D |
| 4.0 x 8 x 22mm | SU40022D | 4.0 x 17.5 x 22mm | SUF40022D |
| 4.0 x 8 x 24mm | SU40024D | 4.0 x 19.5 x 24mm | SUF40024D |
| 4.0 x 10 x 26mm | SU40026D | 4.0 x 21.5 x 26mm | SUF40026D |
| 4.0 x 10 x 28mm | SU40028D | 4.0 x 23.5 x 28mm | SUF40028D |
| 4.0 x 12 x 30mm | SU40030D | 4.0 x 25.5 x 30mm | SUF40030D |
| 4.0 x 12 x 35mm | SU40035D | 4.0 x 30.5 x 35mm | SUF40035D |
| 4.0 x 14 x 40mm | SU40040D | 4.0 x 35.5 x 40mm | SUF40040D |
| 4.0 x 14 x 45mm | SU40045D | 4.0 x 40.5 x 45mm | SUF40045D |
| 4.0 x 16 x 50mm | SU40050D | 4.0 x 45.5 x 50mm | SUF40050D |
| 4.0 x 16 x 55mm | SU40055D | 4.0 x 50.5 x 55mm | SUF40055D |
| 4.0 x 16 x 60mm | SU40060D | 4.0 x 55.5 x 60mm | SUF40060D |
| 4.0 x 16 x 65mm | SU40065D | 4.0 x 60.5 x 65mm | SUF40065D |
| 4.0 x 16 x 70mm | SU40070D | 4.0 x 65.5 x 70mm | SUF40070D |
■ Ø5.0 CCS
| 1/3 Threaded Type | Full Threaded Type | ||
| Spec | Cat. No | Spec | Cat. No |
| 5.0 x 12 x 24mm | SU50024D | 5.0 x 17.5 x 24mm | SUF50024D |
| 5.0 x 12 x 26mm | SU50026D | 5.0 x 19.5 x 26mm | SUF50026D |
| 5.0 x 12 x 28mm | SU50028D | 5.0 x 21.5 x 28mm | SUF50028D |
| 5.0 x 14 x 30mm | SU50030D | 5.0 x 23.5 x 30mm | SUF50030D |
| 5.0 x 16 x 34mm | SU50034D | 5.0 x 27.5 x 34mm | SUF50034D |
| 5.0 x 16 x 38mm | SU50038D | 5.0 x 31.5 x 38mm | SUF50038D |
| 5.0 x 20 x 42mm | SU50042D | 5.0 x 35.5 x 42mm | SUF50042D |
| 5.0 x 20 x 46mm | SU50046D | 5.0 x 39.5 x 46mm | SUF50046D |
| 5.0 x 20 x 50mm | SU50050D | 5.0 x 43.5 x 50mm | SUF50050D |
| 5.0 x 20 x 55mm | SU50055D | 5.0 x 48.5 x 55mm | SUF50055D |
| 5.0 x 20 x 60mm | SU50060D | 5.0 x 53.5 x 60mm | SUF50060D |
| 5.0 x 20 x 65mm | SU50065D | 5.0 x 58.5 x 65mm | SUF50065D |
| 5.0 x 20 x 70mm | SU50070D | 5.0 x 63.5 x 70mm | SUF50070D |
■ Ø6.5 CCS
| 1/3 Threaded Type | Full Threaded Type | ||
| Spec | Cat. No | Spec | Cat. No |
| 6.5 x 16 x 35mm | SU65035D | 6.5 x 28.5 x 35mm | SUF65035D |
| 6.5 x 20 x 40mm | SU65040D | 6.5 x 33.5 x 40mm | SUF65040D |
| 6.5 x 20 x 45mm | SU65045D | 6.5 x 38.5 x 45mm | SUF65045D |
| 6.5 x 20 x 50mm | SU65050D | 6.5 x 43.5 x 50mm | SUF65050D |
| 6.5 x 20 x 55mm | SU65055D | 6.5 x 48.5 x 55mm | SUF65055D |
| 6.5 x 20 x 60mm | SU65060D | 6.5 x 53.5 x 60mm | SUF65060D |
| 6.5 x 20 x 65mm | SU65065D | 6.5 x 58.5 x 65mm | SUF65065D |
| 6.5 x 20 x 70mm | SU65070D | 6.5 x 63.5 x 70mm | SUF65070D |
| 6.5 x 20 x 75mm | SU65075D | 6.5 x 68.5 x 75mm | SUF65075D |
| 6.5 x 20 x 80mm | SU65080D | 6.5 x 73.5 x 80mm | SUF65080D |
| 6.5 x 20 x 85mm | SU65085D | 6.5 x 78.5 x 85mm | SUF65085D |
| 6.5 x 20 x 90mm | SU65090D | 6.5 x 83.5 x 90mm | SUF65090D |
| 6.5 x 20 x 95mm | SU65095D | 6.5 x 88.5 x 95mm | SUF65095D |
| 6.5 x 20 x 100mm | SU65100D | 6.5 x 93.5 x 100mm | SUF65100D |
| 6.5 x 20 x 105mm | SU65105D | 6.5 x 98.5 x 105mm | SUF65105D |
| 6.5 x 20 x 110mm | SU65110D | 6.5 x 103.5 x 110mm | SUF65110D |
추가 사양
■ Ø4.0 CCS Instrument + Washer
| Description | Cat. No |
| 4.0 Cannulated Screw Case | IS14-01 |
| 4.0 Cannulated Driver | IS14-02 |
| 4.0 Cannulated Power Driver | IS14-03 |
| 4.0 Cannulated Reamer | IS14-04 |
| 4.0 Locking Driver | IS14-05 |
| 4.0 Guide | IS14-06 |
| 4.0 Guide Pin | IS14-07 |
| 4.0 Depth Gauge | IS14-08 |
| Can. Screw 4.0 Washer | SU40D |
■ Ø5.0 CCS Instrument + Washer
| Description | Cat. No |
| 5.0 Cannulated Screw Case | IS15-01 |
| 5.0 Cannulated Driver | IS15-02 |
| 5.0 Cannulated Power Driver | IS15-03 |
| 5.0 Cannulated Reamer | IS15-04 |
| 5.0 Locking Driver | IS15-05 |
| 5.0 Guide | IS15-06 |
| 5.0 Guide Pin | IS15-07 |
| 5.0 Depth Gauge | IS15-08 |
| Can. Screw 5.0 Washer | SU50D |
■ Ø6.5 CCS Instrument + Washer
| Description | Cat. No |
| 6.5 Cannulated Screw Case | IS16-01 |
| 6.5 Cannulated Driver | IS16-02 |
| 6.5 Cannulated Power Driver | IS16-03 |
| 6.5 Cannulated Reamer | IS16-04 |
| 6.5 Locking Driver | IS16-05 |
| 6.5 Guide | IS16-06 |
| 6.5 Guide Pin | IS16-07 |
| 6.5 Depth Gauge | IS16-08 |
| Can. Screw 6.5 Washer | SU60D |
